Dry Type Low-voltage Shunt Capacitor
Dry Type Low-voltage Shunt Capacitor
Product Description

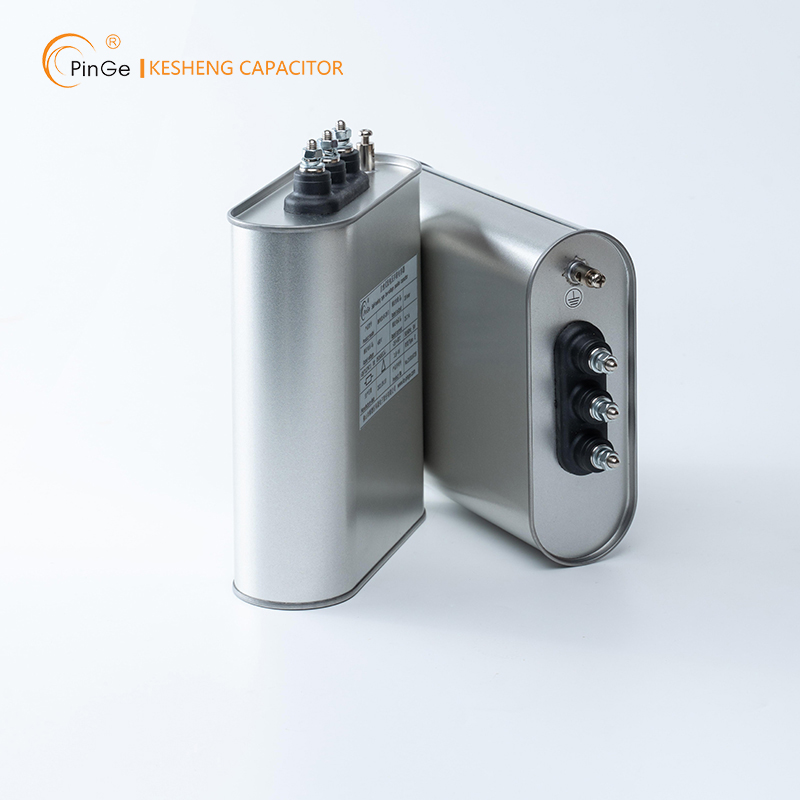

Dry Type Low-voltage Shunt Capacitor's suitable for the power frequency AC power system with rated voltage of 1000v and below, which helps to improve the quality of the power grid, increase the power factor and reduce the line loss.
Dry Type Low-voltage Shunt Capacitor has the advantage of small volume, light weight,low dissipation, low temperature rise, long life, good self-healing and good safety.
Low Voltage Shunt Capacitors Specification
|
Output Kvar |
0.5Kvar…50Kvar |
|
Rated frequecy |
50Hz & 60Hz |
|
Rated voltage |
250Vac…525Vac |
|
Capacitance tolerance |
-5%/+10% other on request |
|
Electrical test VTT |
2.5×VR during 2s |
|
Insulation VTC |
3000VAC/50Hz during 10s |
|
*tanδ(50) |
≤1.0×103 |
|
Protection degree |
IP20,IP00(IP50 on request) |
|
Max.permissible voltage Vmax |
VR+10%(up to 8h daily)/VR+15%(up to 30min daily)/VR+20%(up to 5min daily)/VR+30% (up to 1min daily) |
|
Max.permissible current Vmax |
UP to 1.3·IR(A)(1.5·IR including combined effects of harmonics, overvoltages and capacitance tolerance) |
|
Surge current Is |
UP to 200·IR(A) |
|
Power dissipation* |
≤0.2 W/kvar(dielectric) and ≤ 0.45 W/kvar(total) |
|
Temperature |
-40/D,Max.55ºC |
|
Humidity |
Av.rel.<95% |
|
Maximum altitude |
4000m |
|
Mean life expectancy |
Up to 100 000 hours at temperature class -40/D |
|
Switching |
Max. 5000 switchings per year acc.to IEC 60831 |
|
Safety |
|
|
Mechanical safety |
Overpressure disconnector |
|
Max.short circuit current |
AFC:10kA according UL 810 standard |
|
Discharge resistor |
≤60s to 75V or less |

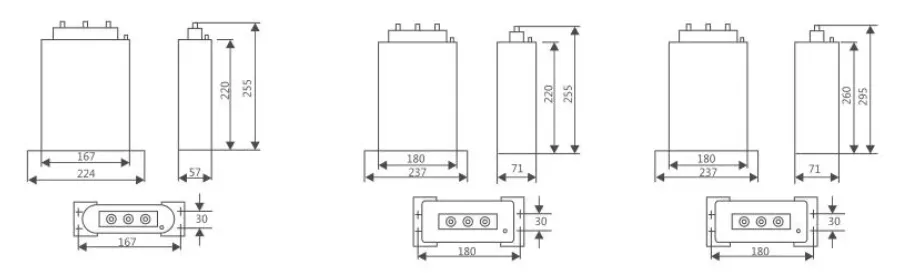

Drawing
