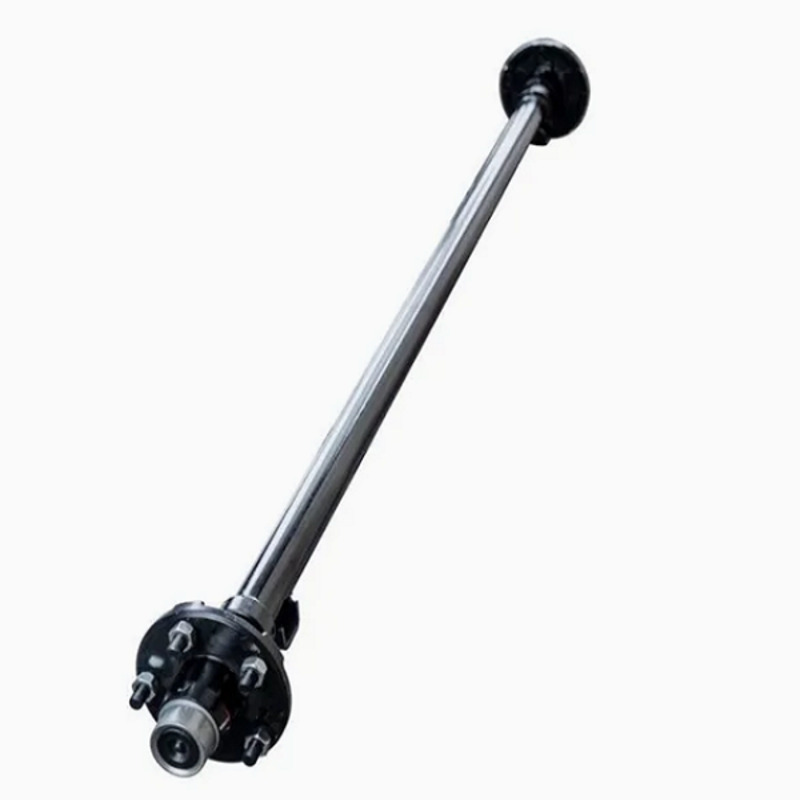

3500lbs Spring Axle with Idle Hub
3500lbs Spring Axle with Idle Hub
Product Description
|
Weight capacity |
3500 lbs |
|
Beam tube size |
60 mm |
|
Hub face length |
Customize based on customer requirement |
|
Spring center distance |
Customize based on customer requirement |
|
Hub |
Idler hub |
|
Bolt pattern |
5 bolts on 4.5" |
|
Outer bearing |
L44649/10 |
|
Inner bearing |
L68149/11 |
|
Dust cap diameter |
50.3 mm |
|
Grease nipple |
Optional |
|
Surface finish |
Black painted |
|
Brake mounting flange |
With 5 holes (optional) |
Features
1. All the electric trailer brakes and drums are painted surface.
2. The electric brakes in American market and Australia market are a little different. We supply both American style and Australian style braked axles.
3. We supply 3500 lb trailer axle kit (with leaf springs, tie plates, U bolts, nuts).
4. As a trailer axle manufacturer we do OEM and make axles as your specification. The hub face and spring center distance determined by customers needs.
Advantages
1. As a professional axle manufacturer, we can customize spring axles according to the hub face to face distance and spring center distance provided by customers, and meet customers' needs well.
2. The leaf spring system is adopted to ensure the best stability, safety and smooth operation.
3. Even under heavy loads.
4. The axles are black painted to remain rust-proof and withstand adverse weather conditions, extending the life of the axle and minimizing the need for maintenance.
