PTFE Fiberglass

Product Description

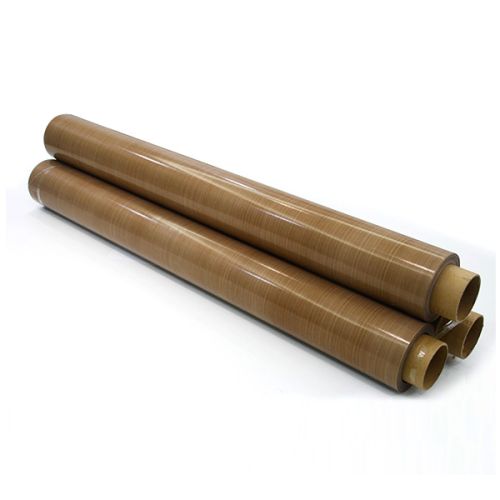

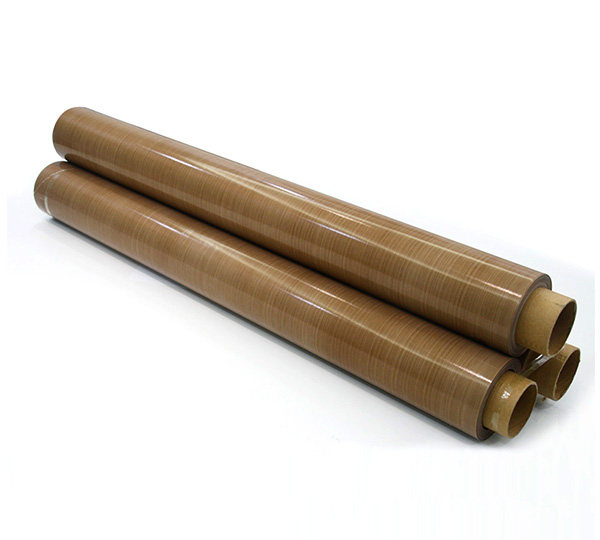

Teflon Coated Fiberglass Fabric Use best fiberglass as the weaving material to knit into high-grade fiberglass basic cloth, coating PTFE resin, making it into various PTFE high temperature resistance clothes with different thickness and width. It is widely used in various fields such as aviation, food, chemicals, electronics, insulation, construction ,grinding wheel, mechanical and so on.It can be made into ifferent thickness and width and colors.

1. Good temperature resistance:24hours working temp from -140°C to 260°C, safety use within 380°C.

2. Excellent non-sticky property: It easier to remove those resin, dope, oil and other sticky things.

3. Top high chemical resistance: Resist strong acid, strong alkali, aqua regia, various organic solvents,

and almost all pharmaceutical items.

4. Excellent insulation property, high weatherability, anti-aging, anti-UV ray. Fire proof.

Item No	Color	Thickness	Max width	Weight	Tensile strength	Temperature
9008AJ	brown	0.08mm	1250mm	165g/m2	130/120N/cm	-140-260℃
9008BJ	black	0.08mm	1250mm	170 g/m2	130/120N/cm	-140-260℃
9008Y	black	0.08mm	1250mm	185 g/m2	130/120N/cm	-140-260℃
9013AJ	brown	0.13mm	1250mm	260 g/m2	220/190N/cm	-140-260℃
9013BJ	black	0.13mm	1250mm	275 g/m2	220/190N/cm	-140-260℃
9013Y	black	0.13mm	1250mm	290 g/m2	220/190N/cm	-140-260℃
9018AJ	brown	0.18mm	1250mm	395 g/m2	330/250N/cm	-140-260℃
9018BJ	black	0.18mm	1250mm	415 g/m2	330/250N/cm	-140-260℃
9025AJ	brown	0.25mm	2800mm	490 g/m2	410/330N/cm	-140-260℃
9025BJ	black	0.25mm	2800mm	510 g/m2	410/330N/cm	-140-260℃
9035AJ	brown	0.35mm	3200mm	660 g/m2	560/445N/cm	-140-260℃
9035BJ	black	0.35mm	3200mm	680 g/m2	560/445N/cm	-140-260℃
9040AJ	brown	0.40mm	3500mm	780 g/m2	820/500N/cm	-140-260℃
9040BJ	black	0.40mm	3500mm	820 g/m2	820/500N/cm	-140-260℃
9065AJ	brown	0.65mm	4000mm	1150 g/m2	1080/750N/cm	-140-260℃
9090AJ	brown	0.90mm	4000mm	1550 g/m2	1500/1250N/cm	-140-260℃
9090BJ	black	0.90mm	4000mm	1650 g/m2	1500/1250N/cm	-140-260℃

With its proven track record, JVC stands out as the premier PTFE fabric manufacturer, delivering engineered PTFE and siliconecoated fiberglass fabric solutions that help you conquer extreme heat, aggressive chemicals, and demanding mechanical stresses. Trust in our expertise and PTFE coated fiberglass fabric to elevate your industrial applications to new heights.
