SJ-20 reducing diameter machine with high speed
Reducing range Ф12mm-Ф24mm Reduction range ≤2.5mm Motor power 11kw Dimensions 1650*1600*1600 Reducing length 250mm Extension length after reducing 10%-15% Yield 5-8PCS Weight 1400kg
Product Description

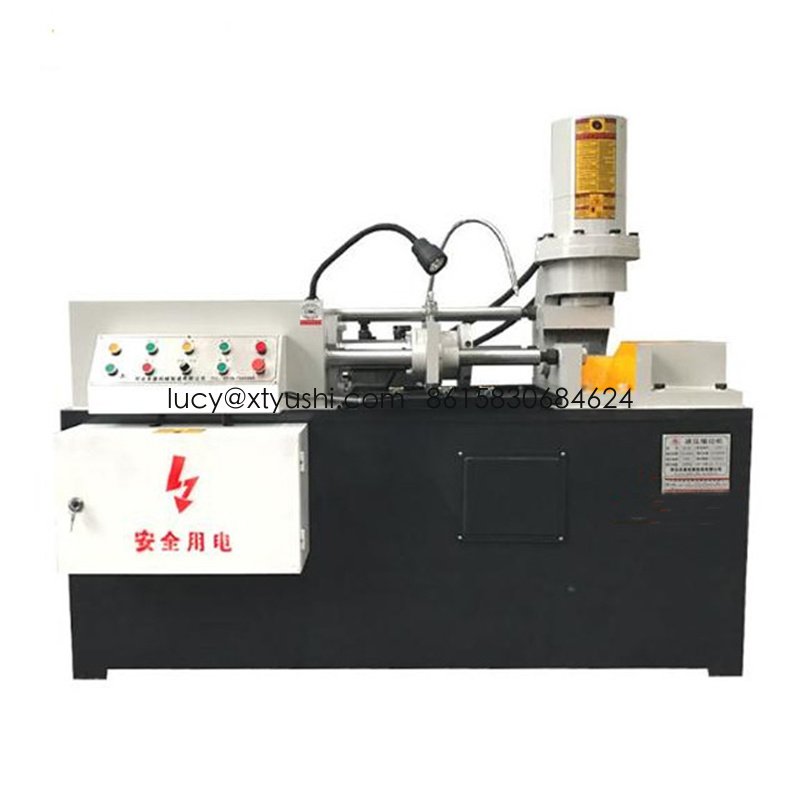

YUSHI reducing diameter machine with high speed
This reducing diameter machine with high speed is a chipless machining equipment, has the advantages of high production efficiency, easy operation, saving raw materials, stable quality.
reducing diameter machine with high speed is the round steel shall be reduced diameter portion into a special mold by cold pressing, use hydraulic pressure compressing section steel density can be improved greatly, so as to improve the tensile strength of material.
This series diameter reducing machine is suitable for diameter 6mm-65mm, low cost, high efficiency low maintenance cost. For requirements beyond the default processing range, we provide comprehensive customization services.
SJ-20 reducing diameter machine with high speed Technical parameter
| Reducing range | Ф12mm-Ф24mm |
| Reduction range | ≤2.5mm |
| Motor power | 11kw |
| Dimensions | 1650*1600*1600 |
| Reducing length | 250mm |
| Extension length after reducing | 10%-15% |
| Yield | 5-8PCS |
| Weight | 1400kg |
The instruction of reducing diameter machine with high speed
1. High precision, stability and high durability
2. Easy operation and maintenance
3. Hydraulic system for driving with large pressure
4. #32, #68 hydraulic oil will be ok for this machine
5. Molds are designed and produced according to exact requirements
6. Reducing length and diameter can be adjustable
7.Safe electric controller with CE Certificates
